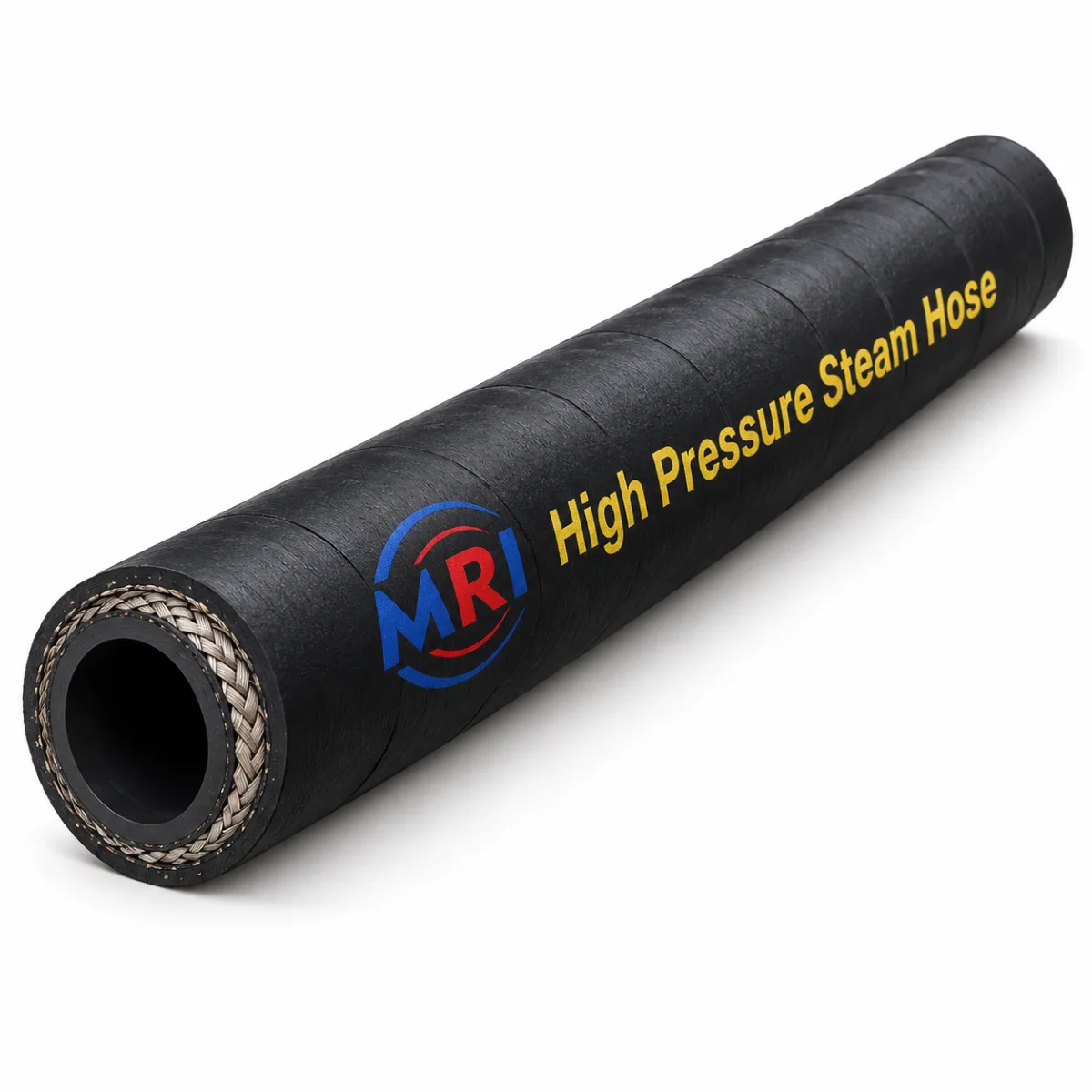

High Pressure Steam Hose Manufacturer in India
Mangla Rubber Industries manufactures high pressure steam hose with a heat-resistant EPDM or chlorobutyl tube, steel wire braid reinforcement and a pin-pricked cover that vents permeated steam. Rated for saturated steam to 18 bar and +210 °C at a 10:1 burst-to-working-pressure safety factor, not the 4:1 used for hydraulic hose, because a steam burst releases vapour at over 200 °C.
Request a quote · Mohit Mangla +91 88007 72816 · Karan Mangla +91 99587 34560 · manglarubberind@gmail.com
High Pressure Steam Hose Specifications
| Specification | Detail |
|---|---|
| Tube | Heat-resistant EPDM or chlorobutyl (IIR) |
| Reinforcement | High-tensile steel wire braid, one or two layers |
| Cover | Heat, weather, ozone and abrasion resistant EPDM, pin-pricked |
| Bore range | 1/2″ to 2″ |
| Saturated steam working pressure | Up to 18 bar (260 psi) |
| Corresponding temperature | Up to +210 °C |
| Safety factor | 10:1 burst to working pressure |
| Superheated steam | Not suitable: use stainless steel corrugated metal hose |
| Fittings | Crimped or bolted steam clamps, or flanged ends |
| Supply | Cut lengths and complete assemblies with whip checks |
Saturated steam temperature is fixed by its pressure: 10 bar is 184 °C and 18 bar is 210 °C. Specify pressure and the temperature follows, which is why a nitrile-tube hose cannot be used on steam at any pressure.
Why Plants and Distributors Choose Mangla High Pressure Steam Hose
- Tube compound chosen for the saturated steam temperature your pressure implies, not a generic rubber.
- 10:1 safety factor as steam practice requires. A supplier quoting 4:1 is quoting a hot water hose.
- Pin-pricked cover that vents permeated steam instead of blistering.
- Supplied with crimped or bolted steam fittings and whip checks, never worm-drive clamps.
- Manufactured in Ghaziabad, Delhi NCR since 1983, supplying textile dye houses, food plants and laundries.
Applications
- Textile dye houses: jigger and jet dyeing machines, dye liquor heating
- Food processing and dairy: vessel and line sterilisation, CIP steam
- Industrial laundries: presses, tunnel finishers and steam tunnels
- Pharmaceutical steam cleaning and sterilisation
- Paper, sugar and chemical process plant steam tracing and jacket heating
- Tyre and rubber moulding platen steam supply
Couplings and End Fittings
Crimped ferrules, purpose-made bolted steam clamps, or ASA and DIN flanged ends above 1″ bore. Worm-drive and screw clamps must never be used on steam because hot rubber relaxes and the hose blows off. Gaskets are PTFE, graphite or steam-rated EPDM, and every assembly is supplied with a safety whip check.
Technical Guides
High pressure steam hose guide · Hose temperature limits · Textile dyeing steam and chemical hoses · PTFE hose for high temperature
Frequently Asked Questions
What temperature can a steam hose handle?
A rubber steam hose handles saturated steam to about +210 °C, corresponding to 18 bar gauge. Superheated steam requires stainless steel metal hose, not rubber.
Why does steam hose use a 10:1 safety factor?
Because the consequence of a steam burst is a jet of vapour above 200 °C at a person, rather than a spill of oil. A steam hose quoted at 4:1 is a hot water hose.
What fittings should be used on steam hose?
Only crimped ferrules, purpose-made bolted steam clamps or flanged ends, always with a whip check. Worm-drive clamps fail as hot rubber relaxes.
Why do steam hoses blister?
Usually condensate left standing in the hose, which flashes to steam inside the tube wall on the next heat-up and delaminates it. Drain every assembly fully after use.
Get a Quote
Send the bore, length, working pressure, media and temperature, and the end fittings you need, and our engineering team will confirm the construction and lead time. Manufacturing at Plot C-2, Sector B-1, Trans Delhi Signature City, Ghaziabad, Uttar Pradesh 201103. Manufacturing hose since 1983.
